Bay and bow windows are the architectural centerpiece homes in Vero Beach deserve. These projecting multi-panel configurations push outward from the wall, adding usable interior square footage while wrapping a room in glass and natural light. For Florida homeowners, the appeal runs deeper than aesthetics: every bay and bow we install is built on a laminated impact glass platform engineered to hold the line during hurricane season. TruePane Windows & Doors installs these systems across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, matched to your specific wind zone. Call (772) 279-7983 to talk through a configuration for your home.

Call (772) 279-7983

Product Overview - Bay & Bow Windows

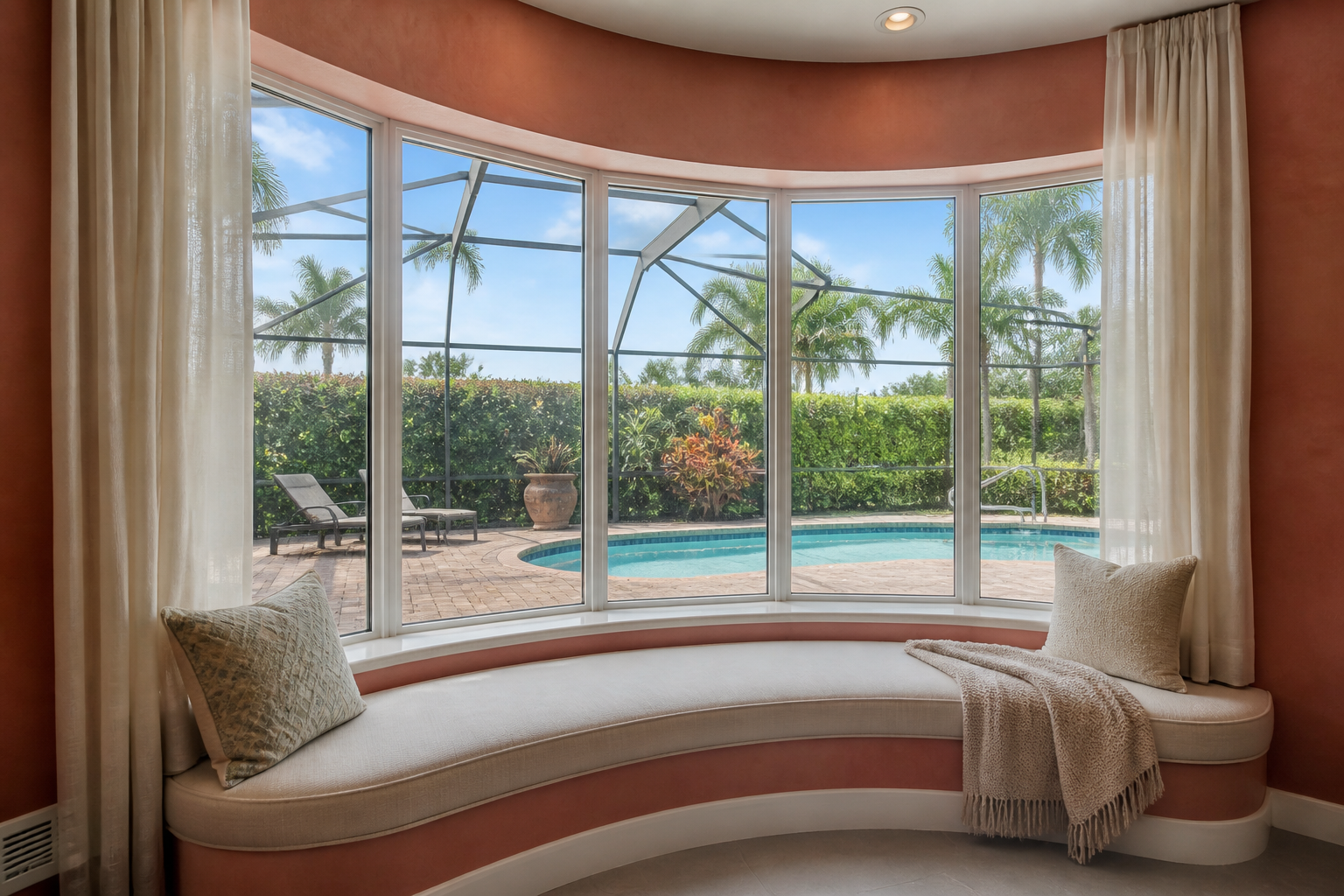

A bay window typically uses three panels: a wide fixed center unit flanked by two angled operable or fixed side units. A bow window curves outward with four, five, or even six panels arranged along a gentler arc. Both profiles create a deep sill shelf, a broader view plane, and the feeling of a room extending past its original footprint. In Vero Beach, where outdoor light is abundant and interiors benefit from visual breathing room, bay and bow windows transform a flat wall into a focal point.

What makes these configurations genuinely suited to hurricane-prone construction is the glazing at their core. Each panel carries laminated impact glass with a PVB interlayer, the same protective technology used in automotive windshields. Under impact, the glass may crack, but the interlayer holds the pane in the frame. That means no open breach for wind-driven rain and pressure to exploit. TruePane Windows & Doors supplies bay and bow configurations in aluminum or vinyl frames, custom fabricated to your opening. We build each unit to the design pressure your Vero Beach wind zone demands, never speculating on ratings that exceed what your structure actually requires.

For homes from Riomar to Central Beach to Indian River Shores, a bay or bow window is also a deliberate investment in daily comfort. The seat shelf becomes a breakfast nook or reading corner. The sightline widens. And with Low-E insulated glass options, the glass assembly works to manage Florida’s solar load without dimming the view. We engineer every order to your opening dimensions and your aesthetic, then install it level, plumb, and square under AAMA 2400/2410 practice.

Technical Specifications

• Frame materials: Aluminum or vinyl, selected for coastal corrosion resistance and long-term dimensional stability.
• Maximum size: Custom fabricated to the opening. We do not force stock sizes into non-standard walls; the unit is built to your measured rough opening.
• Glass options: Laminated impact glass with a PVB interlayer, Low-E insulated glass, tinted glass, and clear glass.
• Color/finish options: White, almond, bronze, black, and tan.
• Sill options: Standard sill or seat/shelf sill, depending on whether you want a narrow ledge or a deeper usable surface.
• Design pressure: Matched to your wind zone, up to +/-100. Never higher than the structure requires.
• Compliance: Miami-Dade NOA and Florida Product Approval numbers available per configuration; engineered to Florida Building Code (FBC) High-Velocity Hurricane Zone (HVHZ) requirements.

Hurricane & Compliance Performance

Laminated Impact Glass - The PVB interlayer is the heart of the system. When a projectile strikes, the glass fractures but remains bonded to the interlayer, keeping the window envelope sealed. In Vero Beach, that means no gap for wind, rain, or pressure changes to exploit mid-storm. Every bay and bow panel we install uses this glazing as its foundation.

Miami-Dade NOA / Florida Product Approval - Each bay and bow configuration carries Notice of Acceptance and Florida Product Approval documentation specific to that assembly. These are issued per configuration, not as blanket certifications. We provide the numbers with your specific quote, and your building department can verify them directly against the elevation of your home.

FBC / HVHZ Compliance - Our bay and bow windows are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. HVHZ is the strictest windborne debris region in the state, and it applies to much of coastal Florida, including Indian River County. That is the standard we build toward for every Vero Beach installation.

TAS 201 / TAS 202 / TAS 203 Testing Context - These are the test protocols HVHZ-rated products face: TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. A window that passes this suite proves it can absorb a hit, keep performing under repeated pressure cycling, and resist intrusion after impact. That is the bar, and it is not a low one.

Design Pressure for Your Wind Zone - Design pressure is not a marketing number; it is an engineering value tied to where your house sits. We match your bay or bow window’s design pressure to your wind zone, up to +/-100, and never higher. Over-specifying is a waste of money. Under-specifying is a risk. We land exactly where your elevation demands.

Energy Performance - Low-E and insulated glass options are available for every bay and bow configuration we sell in Vero Beach. Low-E coatings reflect solar heat while letting visible light through, which matters in a room where the glass area is large and the Florida sun is not gentle. Insulated glass further reduces heat transfer through the assembly.

Color & Glass Options

Vero Beach architecture runs the spectrum from Key West-inspired cottages to Mediterranean revival estates to clean-lined modern builds. The finish options for our bay and bow windows reflect that range. White and almond suit the classic Florida ranch and coastal cottage look. Bronze and black anchor more transitional and contemporary homes, and they hold up well against a bright white exterior. Tan bridges the gap for stucco-heavy Mediterranean exteriors where a softer neutral feels right. The frame is aluminum or vinyl, and the finish is baked on for resistance to salt air and UV exposure in Indian River County’s coastal environment.

On the glass side, clear laminated impact glass preserves the truest color and the brightest interior. Tinted glass cuts glare, which homeowners in high-exposure rooms often prefer. Low-E insulated glass is the choice when the room faces west or southwest and afternoon heat becomes a daily reality. We will walk you through how each option reads from inside and outside the home before you commit to a quote.

Installation by TruePane Windows & Doors in Vero Beach

A bay or bow window is only as reliable as the installation underneath it. The NOA-rated assembly performs on paper; on your wall, it performs only if the opening is prepped correctly, the unit is set level and square, and the perimeter is sealed properly. That is why we handle every Vero Beach installation with the same discipline on a small three-panel bay as we do on a five-panel bow with a seat sill.

We start with a pre-install inspection of the rough opening. We check the header, the sill framing, and the wall plane before the new window ever leaves our truck. During installation, the frame is set level, plumb, and square, then anchored to the structure. The perimeter gets an AAMA 812 low-expansion foam sealant treatment, which provides a continuous air and water seal without distorting the frame. The whole install follows AAMA 2400/2410 practice for flashing and integration with the wall assembly. After the unit is secured, we run a final water test on critical junctions, clean up the site, and leave the opening ready for finish trim.

Permitting in Vero Beach and the surrounding HVHZ jurisdictions is not optional. Your bay or bow window will require product approval documentation submitted with the permit. We know what the building department expects, and we provide the paperwork your application needs. Improper installation compromises the NOA-rated system, and in a coastal town where wind and rain are facts of life, that is not a corner worth cutting. Call (772) 279-7983 to schedule your pre-install measurement.

Frequently Asked Questions - Bay & Bow Windows

Get a Quote - Bay & Bow Windows in Vero Beach

If you are planning a bay or bow window in Vero Beach, start with a measured conversation, not a guess. TruePane Windows & Doors will come out, measure the opening, confirm your wind zone and design pressure, and put together a line-item quote with no pressure and no games. Call (772) 279-7983 to schedule your free on-site measurement, or to ask about a specific configuration from our PGT, CGI, CWS, ES Windows, ECO, or Mr-Glass impact lines.
