VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Vero Beach, FL | TruePane Windows & Doors

The VLX 100 Double Swing is a paired aluminum French door system that gives Vero Beach homeowners wide, unobstructed openings without sacrificing coastal durability. You get two door panels that swing from the center, balanced framing on both sides, and a flush threshold that preserves clean sightlines from your living room to the patio. TruePane Windows & Doors is an authorized ViewLux installation partner, which means you’re buying through a local Vero Beach team that has installed this exact product in coastal homes, not a distant call center that sub-contracts work to whoever picks up the phone. Call (772) 279-7983 to talk through your opening size and finish preferences.

Call (772) 279-7983

Product Overview - VLX 100 Double Swing / French Door

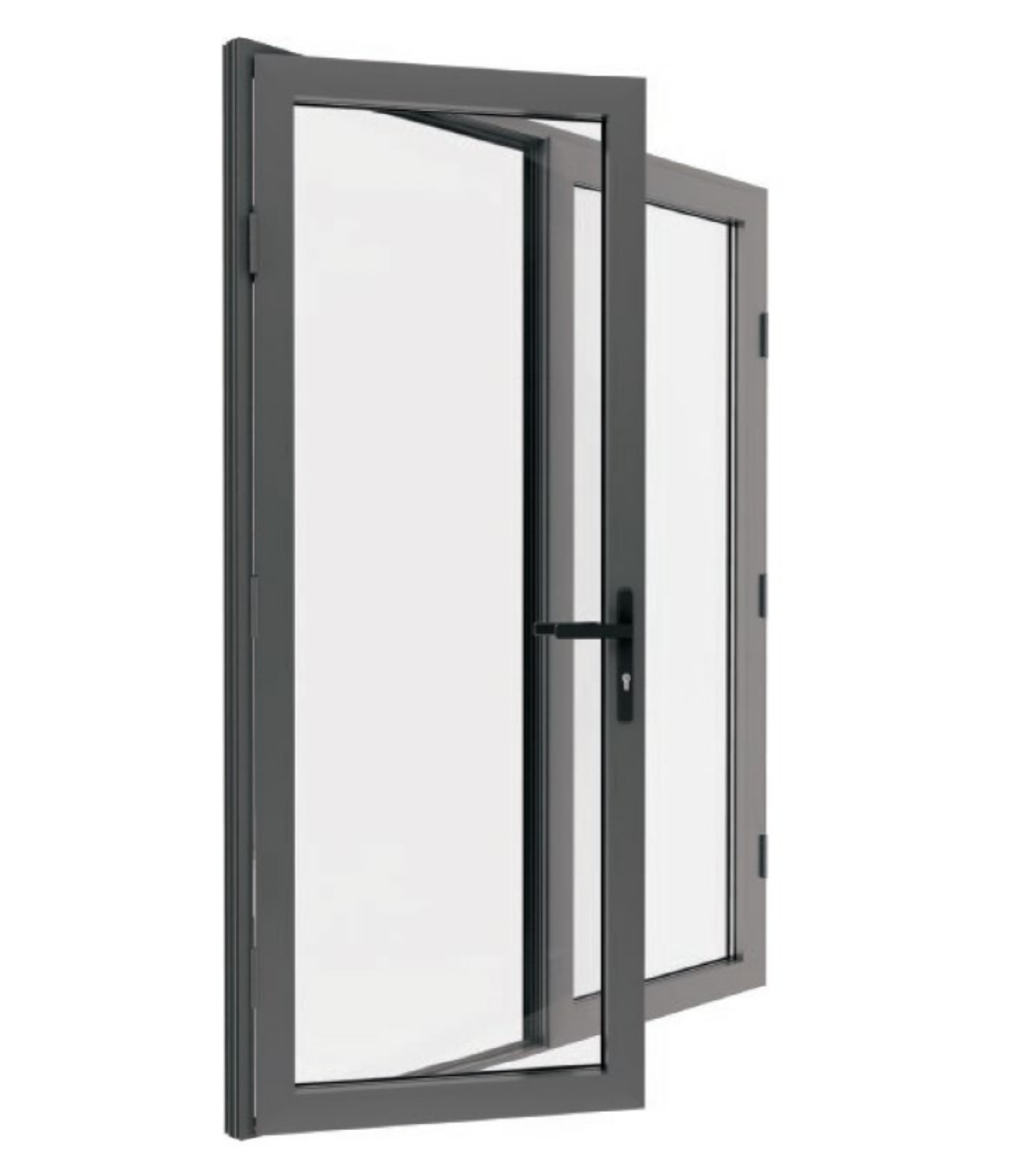

The VLX 100 Double Swing / French Door is designed around paired aluminum panels with symmetrical sightlines, a flush threshold, and multi-point lock hardware. In practical terms, that means the left and right door panels have identical frame dimensions, so the view reads as one balanced opening rather than a door with an awkward fixed panel stuck on the side. The flush threshold sits nearly level with your interior floor, which our Vero Beach clients appreciate when they’re moving furniture through or when a family member uses a walker or wheelchair.

Aluminum is the frame material here, and that’s a deliberate engineering choice for Florida’s climate. Unlike wood, it won’t swell in the summer humidity that defines a Vero Beach July. Unlike vinyl, it holds its profile shape through sun exposure and doesn’t get brittle with age. The profile width of 2.56 inches gives the door real structural presence without feeling bulky, and the 0.098-inch wall thickness adds torsional strength that keeps panels from sagging over time. Multi-point locking hardware engages at several points along the frame, not just a single latch. That means a tighter seal when the door is closed, better resistance to forced entry, and less play in the panels over thousands of open-and-close cycles. Buyers choosing this series around Vero Beach are usually looking for a wide opening between a living area and a lanai, pool deck, or screened patio while still wanting a serious, weather-rated enclosure when the doors are closed.

Technical Specifications

Here’s what the VLX 100 Double Swing / French Door is built from, in plain terms. These are the numbers our Vero Beach clients ask about most often during initial consultations.

• Frame material: Extruded aluminum with a 0.098-inch wall thickness
• Profile width: 2.56 inches, designed for a clean framed look
• Maximum opening span: Up to 96 inches wide across both panels
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen, or none
• Threshold: Flush design for smooth transitions and ADA-friendly access
• Hardware: Multi-point locking system engaging the frame at multiple contact points
• Performance: Thermal break technology, NFRC-rated energy data, AAMA 2400/2410 installation compliance

Performance Features

Aluminum doors have a reputation for conducting heat, but the VLX 100 Double Swing / French Door is built differently. Each performance feature below matters in Vero Beach’s specific climate, where salt air, afternoon thunderstorms, and hurricane-season wind loads are all real factors.

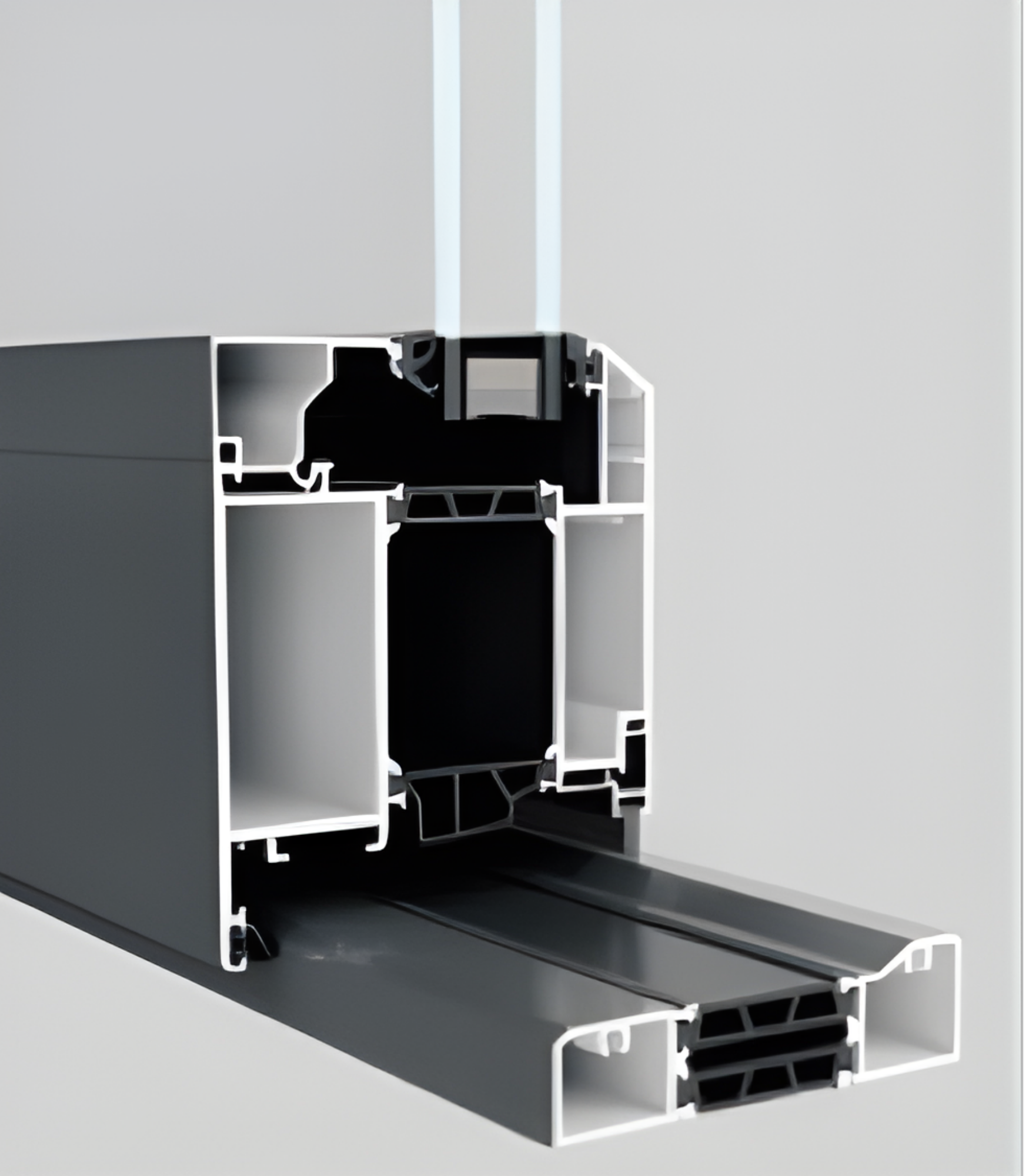

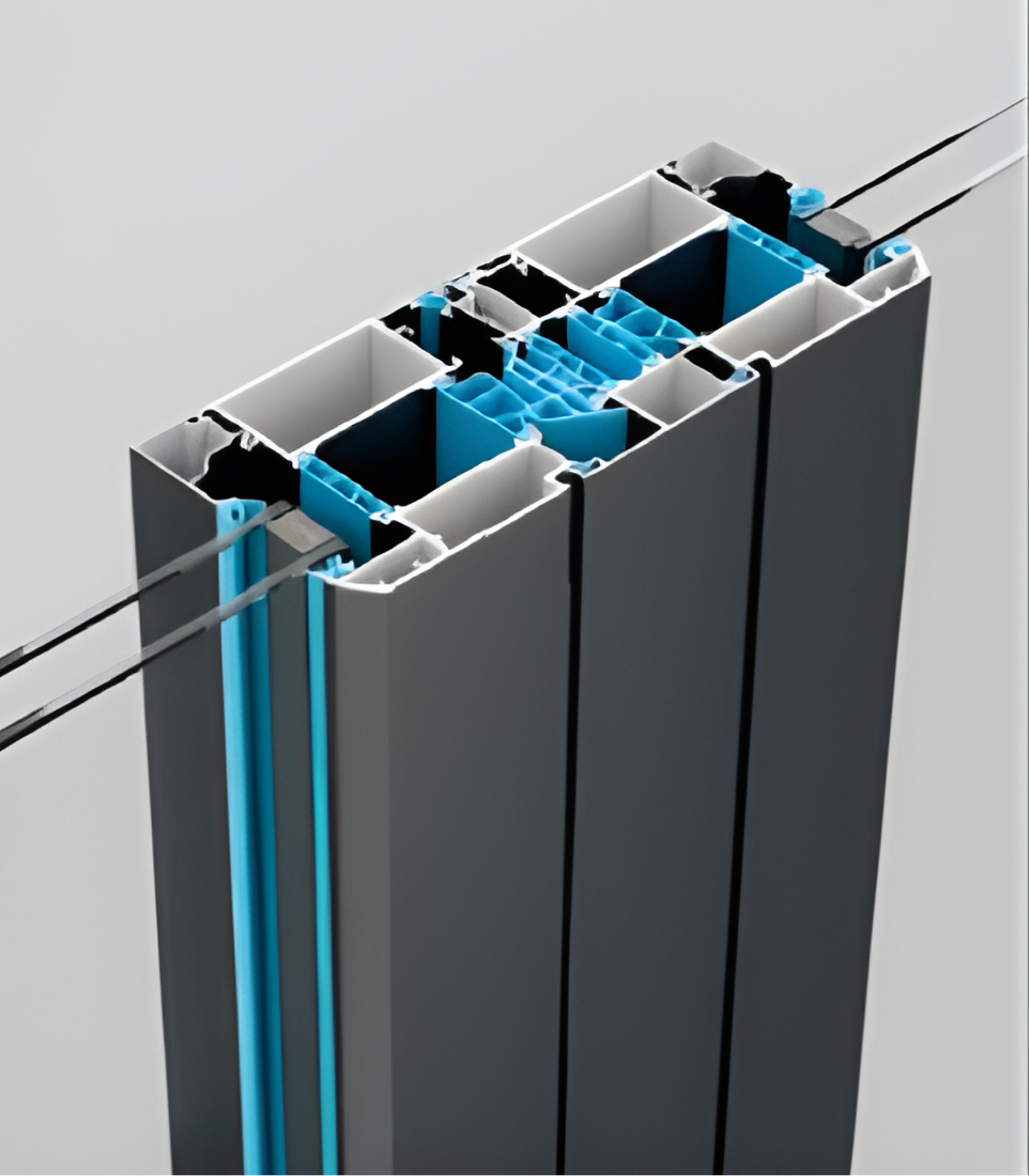

Thermal Efficiency - A thermal break separates the interior and exterior aluminum faces, interrupting heat transfer through the frame. The result is NFRC-rated energy performance that holds conditioned air inside during Vero Beach’s eight-month cooling season and keeps the exterior face from sweating when you run the AC hard in August.

Acoustic Performance - The multi-point hardware pulls the panels tight against the perimeter seals, and the laminated glass option adds real sound reduction. For homes on Indian River Boulevard, Route 1, or near US-1 where road noise is constant, this combination turns a double door into a meaningful noise barrier. We measure the difference on almost every install.

Airtightness & Weather Seal - The panels close against a continuous perimeter gasket system, and that seal stays consistent because the multi-point lock applies even pressure across the full frame. No dead spots where air sneaks through because one latch is doing all the work. For air quality and humidity control in a Vero Beach home this is a continuous benefit, not an occasional one.

Waterproofing - The flush threshold doesn’t mean compromised drainage. The sill system is engineered to shed water outward, and during installation we apply AAMA 812-rated low-expansion foam sealant to every perimeter joint. That’s the difference between a door that keeps a summer storm out and one that wicks moisture under your flooring inside two seasons.

Wind Resistance - This is a wind-load rated system, and Vero Beach’s building codes demand it. The combination of the 0.098-inch wall thickness, the 2.56-inch profile, and the tie-down method we use during installation means the door withstands the gusts that come with afternoon squalls and named storms. Impact-resistant laminated glass is available if code requires it or if you simply want the added protection.

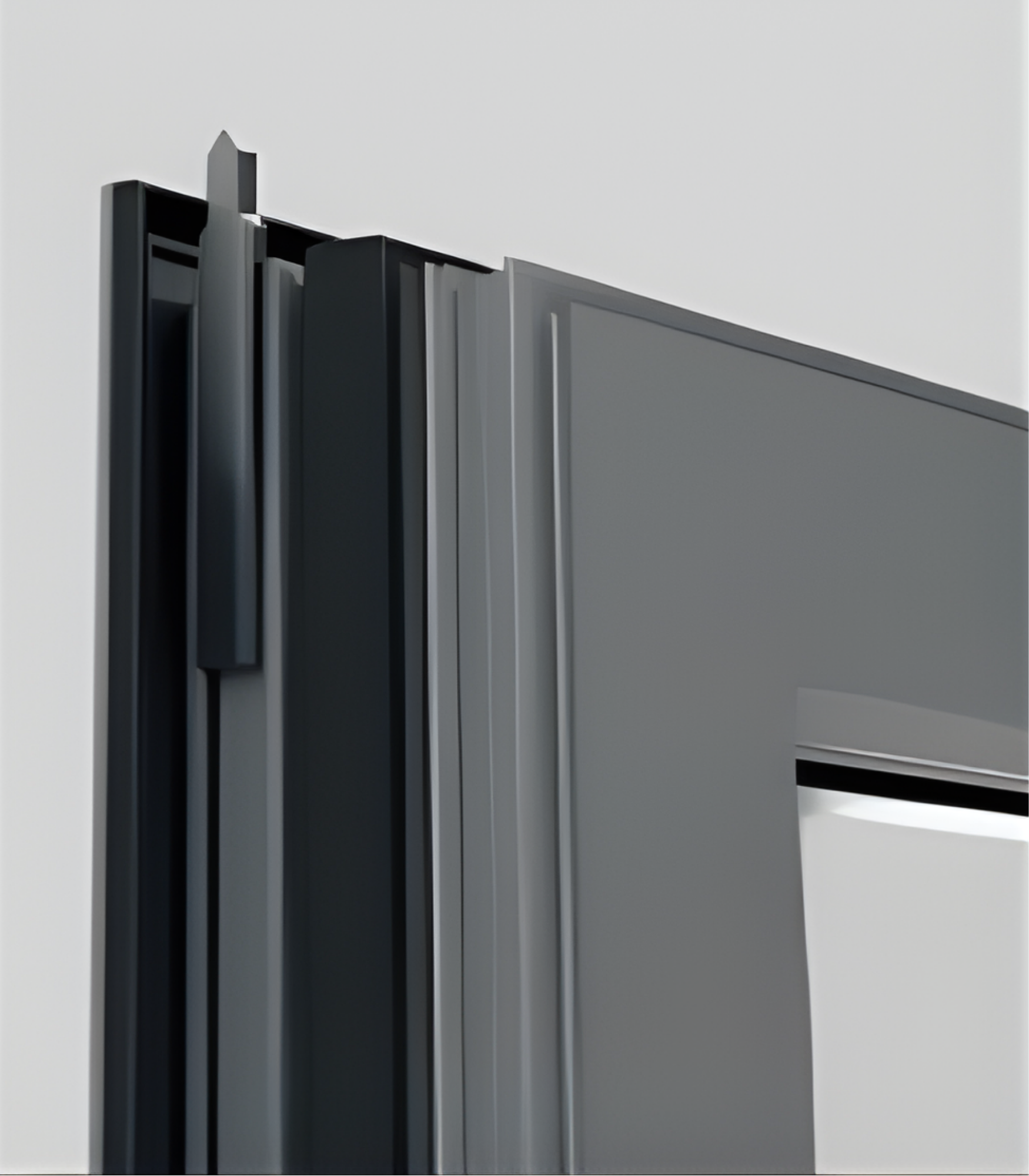

Security & Hardware - Multi-point locking hardware is the standout. Instead of a single locking point that a shoulder or pry bar can pop, the VLX 100 Double Swing / French Door locks at multiple points along the frame. Attempted forced entry distributes force across a broader surface, and the pins engage deep into the frame rather than a shallow keeper.

Color & Glass Options

Six finishes are available for the VLX 100 Double Swing / French Door, and the choice changes the character of the whole opening. Premium Black is the current favorite for modern coastal homes in Vero Beach’s newer communities, especially paired with white stucco. Pure White reads classic and clean, the safe choice for traditional Florida architecture and resale value. Anodized Silver is the most understated, with a raw aluminum look that works with contemporary interiors. Bronze and Champagne lean warmer, pairing well with homes that have earth-toned exteriors or stained wood trim. Teak Wood gives you a wood-grain finish on aluminum, which is the option for a homeowner who wants the look of wooden French doors without the warping, swelling, and repainting that Vero Beach humidity forces on real wood every few years.

On the glass side, the practical choices break down like this. Clear Low-E is the upgrade we recommend most because it cuts solar heat gain without tinting the view. Tempered glass is safety-rated, required by code in many door applications. Laminated glass adds impact resistance and sound reduction. Frosted and Obscure glass are for privacy, useful if your double door opens to a side yard or a neighbor’s sightline rather than a private pool deck.

Installation by TruePane Windows & Doors in Vero Beach

A door that leaves the factory performing well can fail in a Vero Beach home if it isn’t set correctly. That’s not an exaggeration. Manufacturer warranties on the VLX 100 Double Swing / French Door assume proper installation to the AAMA 2400/2410 standard, and an improperly shimmed frame or an unsealed perimeter will void that coverage.

Our installation process starts with a pre-install inspection of the rough opening. We check the substrate for rot, moisture intrusion, or uneven settling, and we flag issues before the door goes in, not after. Then we set the frame level, plumb, and square, shimming incrementally so the double panels meet cleanly at the center and latch without fighting the frame. Every perimeter joint receives AAMA 812 low-expansion foam sealant, which seals without distorting the jamb. We flash and seal the sill according to coastal wind-driven rain conditions that are specific to Florida’s east coast. After the panels are hung and the hardware is adjusted, we run a water test on the sill and lower frame, operate the door through its full swing cycle, and walk you through the lock, the screen retraction if applicable, and the care requirements. We handle cleanup and haul-away on every Vero Beach install.

If you’re replacing an existing door, we also check the header condition. On older Vero Beach homes, especially mid-century builds in areas like Riomar or McAnsh Park, we’ve seen headers that weren’t sized properly for wide openings. That’s a code issue and a safety issue, and we address it before we hang anything.

Frequently Asked Questions - VLX 100 Double Swing / French Door

Get a Quote - VLX 100 Double Swing / French Door in Vero Beach

If you’re planning a replacement for an existing double door or designing a new opening between your living space and a lanai, start with a measurement appointment. We’ll bring finish samples and glass swatches so you can see options in your home’s actual light, not on a website. Call TruePane Windows & Doors at (772) 279-7983 to schedule a free on-site measurement and get a line-item quote for the VLX 100 Double Swing / French Door installed in Vero Beach.

Written by the team at TruePane Windows & Doors, serving Vero Beach, FL.
