AfterVLX 138 Panoramic Sliding Door in Vero Beach, FL | TruePane Windows & Doors

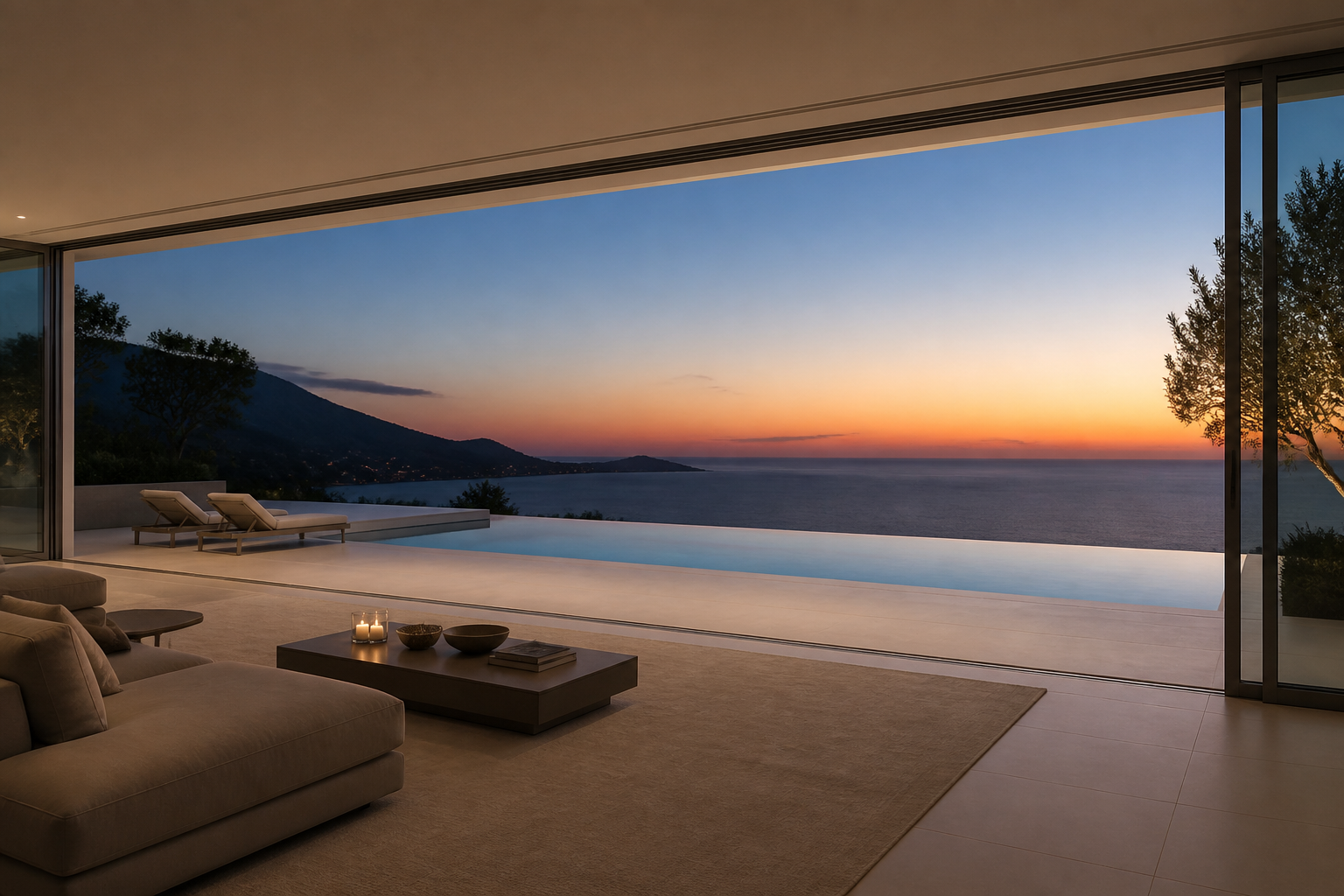

The VLX 138 Panoramic Sliding Door is the kind of door people plan entire renovations around. It’s a large-span aluminum slider built to open up a wall of glass up to 36 feet wide, which means you get that uninterrupted view of your pool, patio, or Intracoastal-facing backyard without a thick frame cutting through it. TruePane Windows & Doors is an authorized ViewLux installation partner, so when you buy this door through us, you’re getting the product straight from the manufacturer’s certified supply chain plus a Vero Beach install crew that does this exact door regularly. Call (772) 279-7983 to talk through your project or book a free on-site measurement.
Product Overview - VLX 138 Panoramic Sliding Door

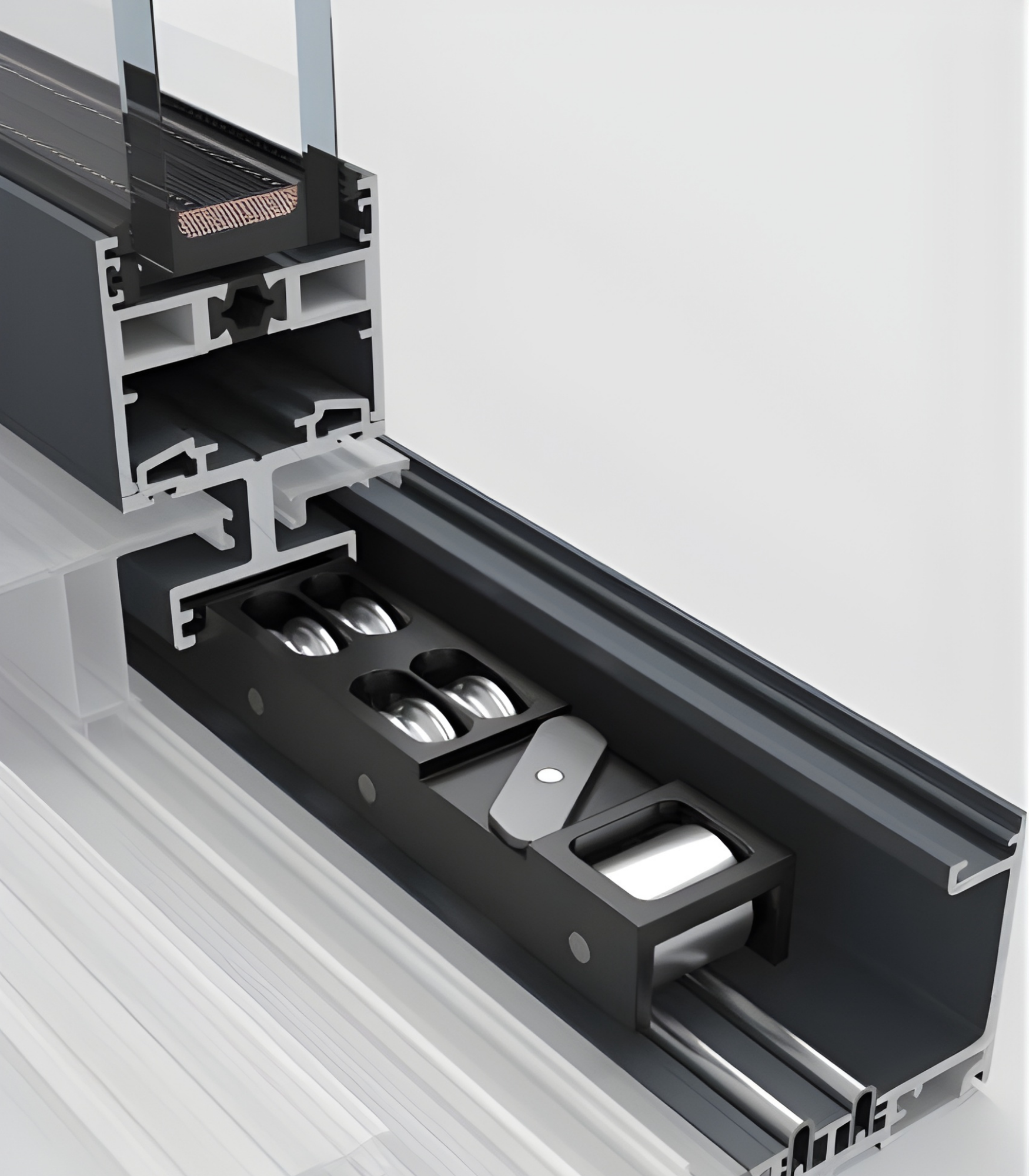

The VLX 138 gets its name from the wall thickness of its extruded aluminum profile: 0.138 inches. That’s a meaningful number, because it’s thick enough to carry massive glass panels over spans most doors can’t touch, yet the profile itself stays trim at 1.535 inches wide. What you notice first is not the frame at all. It’s the view. This is a luxury large-span panoramic slider designed for expansive, uninterrupted sightlines, with stainless-steel bearing rollers that make a 300-pound panel glide like it weighs nothing.
Architecturally, this door works best in modern and transitional homes across Vero Beach: mid-century beach houses near Riomar, new construction in Grand Harbor, and barrier-island estates where the whole point is bringing the outside in. It can be configured in two, three, or four tracks, so you can stack panels to one side, split them from the center, or open an entire corner of the living room. The frame is thermally broken aluminum, which is the critical detail for Florida. Without a thermal break, a metal door frame sweats, fogs up, and bleeds heat into the house. With it, the door holds up to humidity, salt air, and afternoon sun without warping or corroding. That’s why we recommend this series over hollow vinyl sliders for any Vero Beach home where the door is a focal point.
Technical Specifications
| Specification | Detail |
|---|---|
| Wall thickness | 0.138 in extruded aluminum |
| Profile width | 1.535 in |
| Maximum span | Up to 36 ft wide |
| Track configurations | 2-Track, 3-Track, 4-Track |
| Glass options | Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint |
| Finish options | Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood |
| Screen options | Retractable Screen, Sliding Screen |

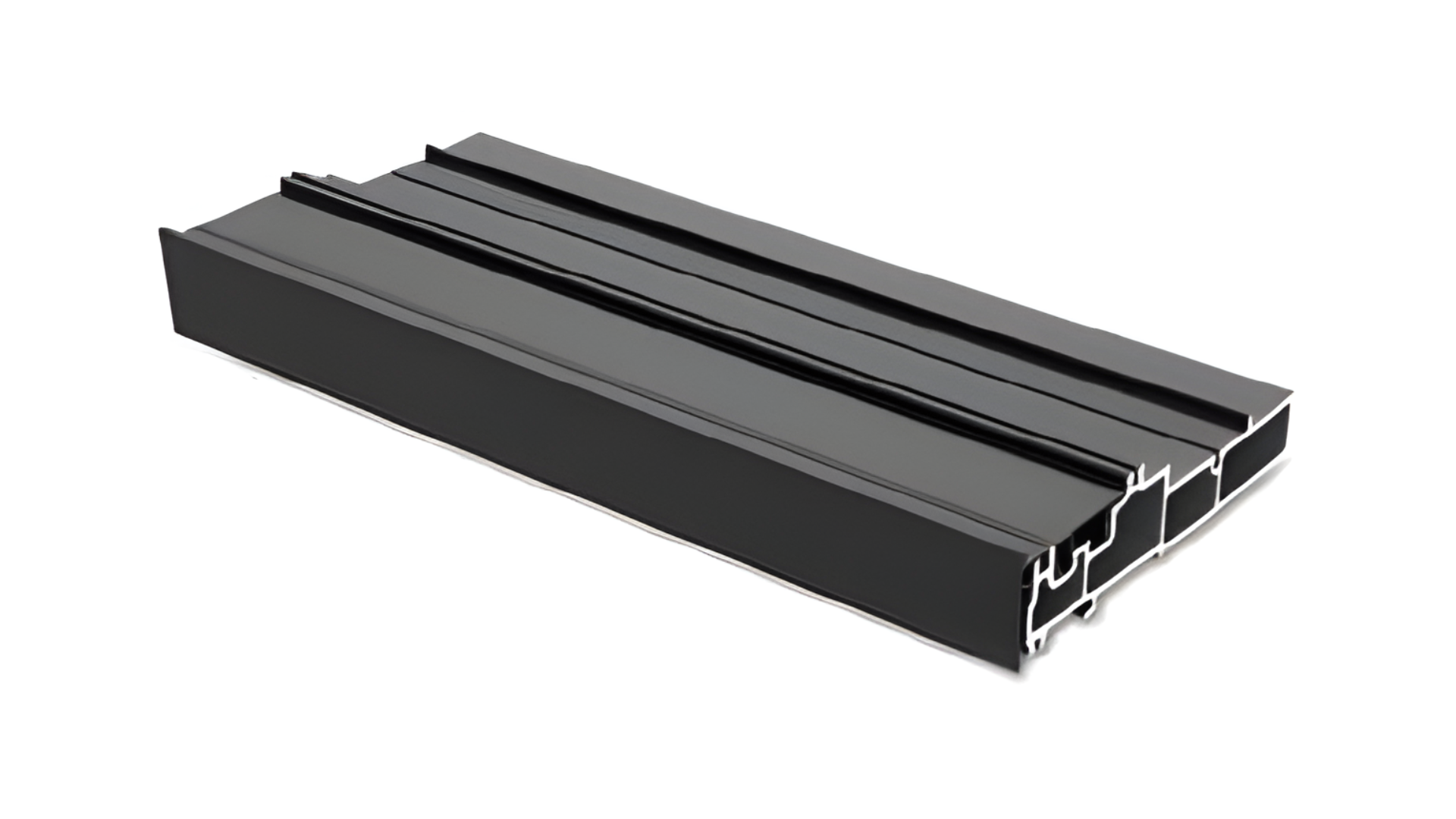

| Sill options | Flush Sill, Low-Profile Sill, Recessed Sill |
| Performance standards | NFRC-rated thermal break, AAMA 2400/2410 install compliance |
| Impact option | Laminated impact-rated glass available |
All specs above are exact for the VLX 138 series. Your TruePane project quote will match the spec sheet line by line, so you know what you’re paying for.
Performance Features
Thermal Efficiency

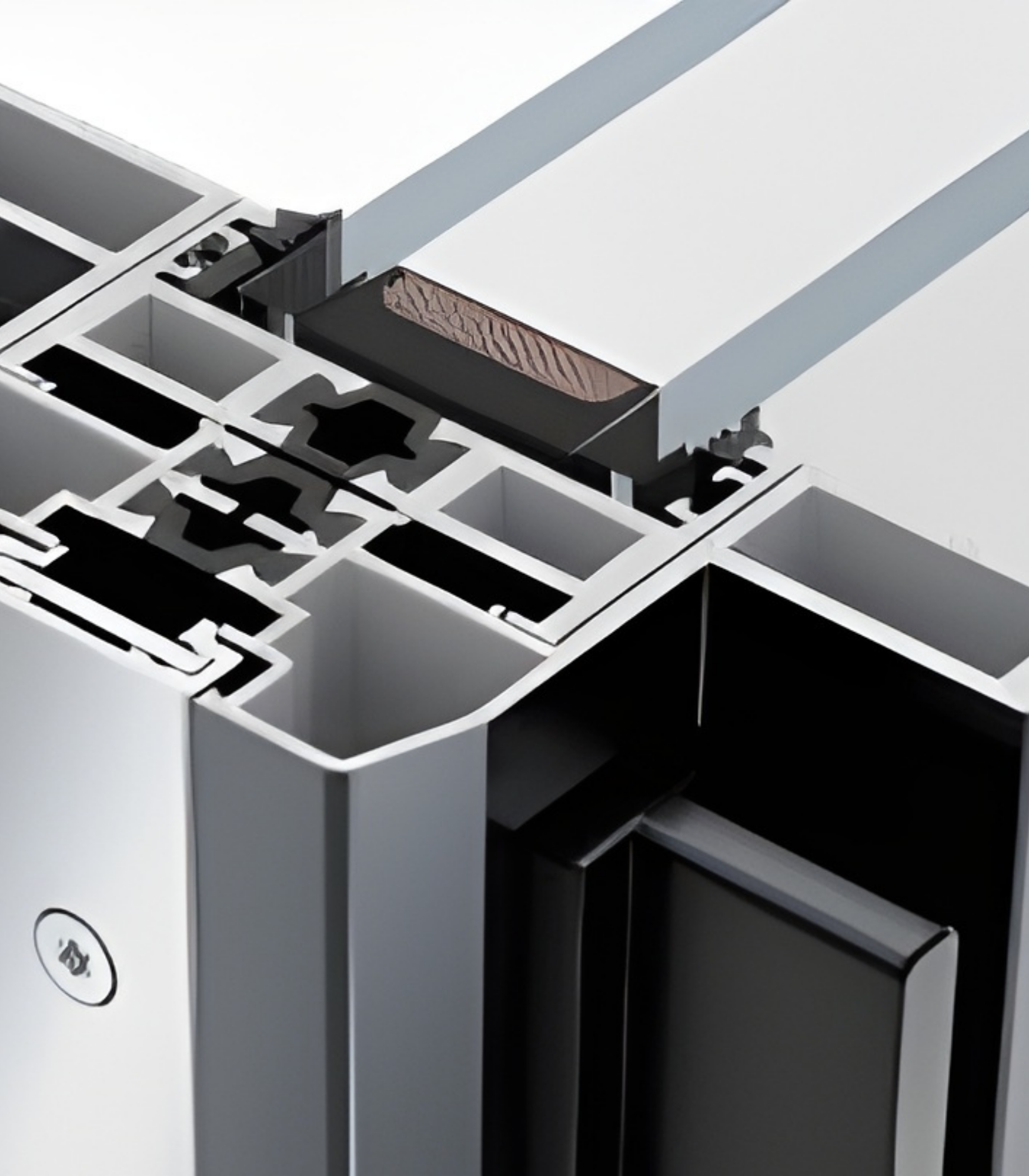

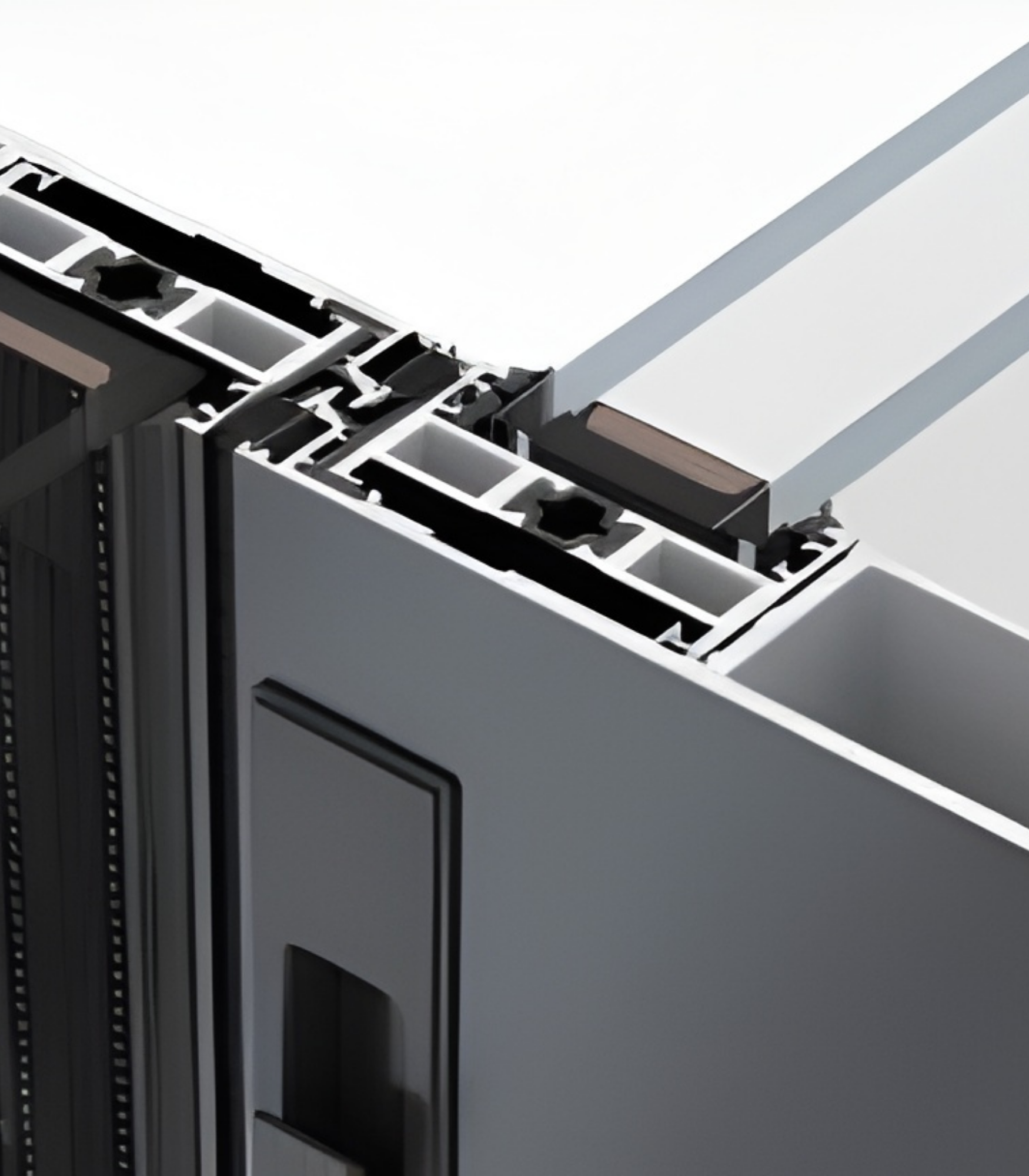

Every VLX 138 panel is built around a polyamide thermal break that separates the interior and exterior aluminum. That break is what earns the NFRC energy rating and keeps your air-conditioned air inside during a Vero Beach August. Without it, the frame conducts heat straight into the house and your AC bill climbs with it.
Acoustic Performance
The VLX 138 is sound-rated to reduce outdoor noise when closed. For homes off A1A or anywhere near US-1, upgrading to laminated glass cuts even more road noise. If the Atlantic is your backdrop, you’ll still hear the surf; you just won’t hear every motorcycle that goes by.
Airtightness & Weather Seal

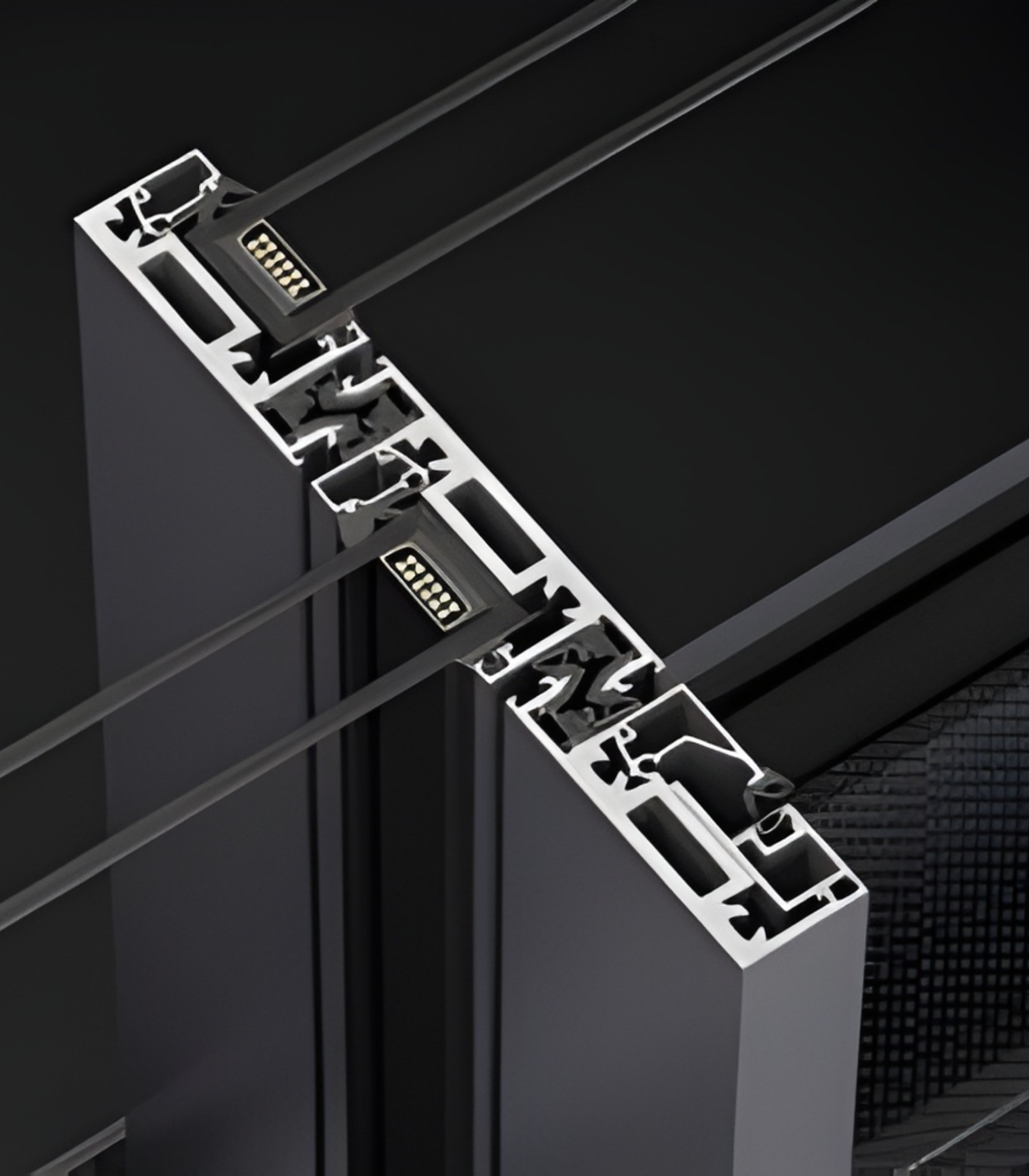

The door’s interlocking panels and continuous perimeter gaskets are built to a measurable airtightness standard. In Vero Beach, where east winds push rain sideways in summer storms, that seal is the difference between a dry great room and wet baseboards.
Waterproofing

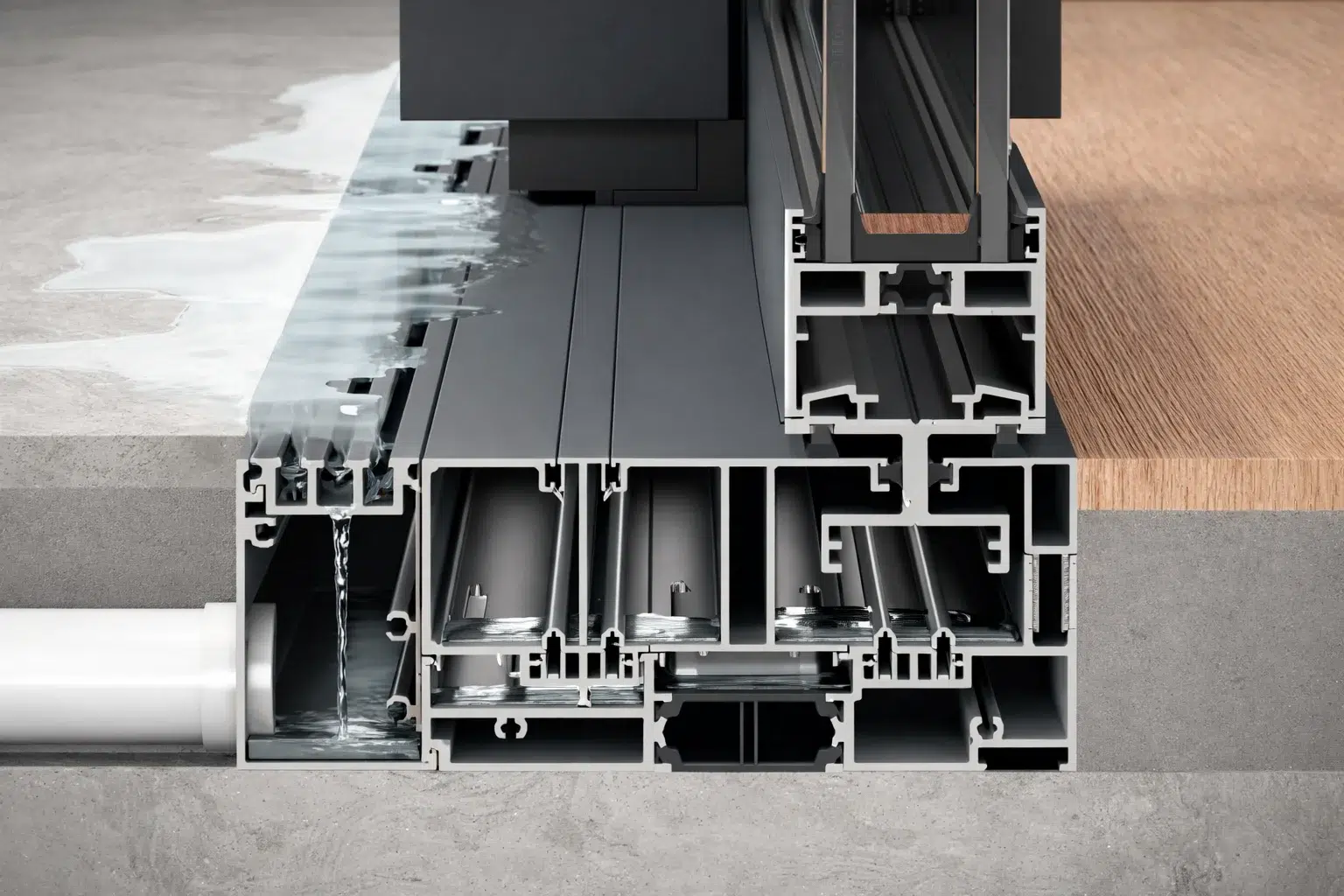

Every sill option, from flush to recessed, channels water away through weep holes rather than over the interior floor. The waterproofing rating is tested at the factory, and then we re-test after installation by running water across the full track with the door closed.
Wind Resistance
The VLX 138 is wind-load rated for the Florida coastal climate. With impact-resistant laminated glass, the door can be configured to meet high-velocity hurricane zone requirements in Indian River County. For new construction, your floor plan may require it; we’ll match the door package to your structural drawings.
Security & Hardware

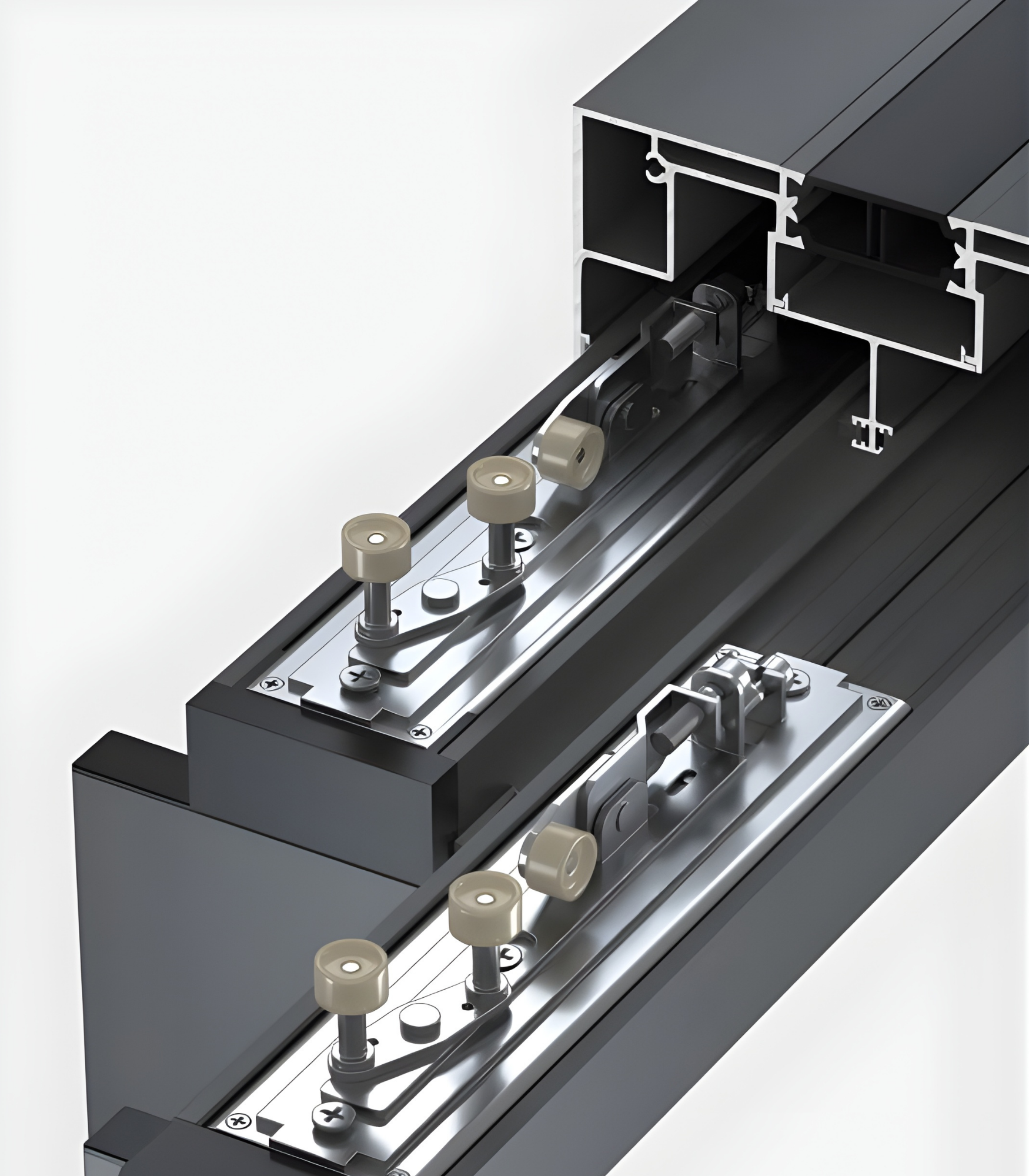

The multi-point locking system engages at the top, bottom, and center of each panel, with stainless-steel bearing rollers and reinforced corner keys. The lock hardware is concealed inside the profile, which keeps it clean from a design standpoint and hard to tamper with from the outside.
Color & Glass Options
You can order the VLX 138 in six finishes. Premium Black and Anodized Silver lean modern and pair well with the sharp, minimal look of newer Vero Beach builds in Islesworth or Pointe West. Pure White and Champagne read softer and traditional, and we see many Coastal-style homes along the river use those. Bronze is your pick for warmth without going dark, and Teak Wood gives you the look of a timber frame without the maintenance, which matters more than people realize in a salt-air environment.
Glass choice drives privacy and sun control more than most people expect. Clear is the default for pure see-through views. Low-E is the energy upgrade: it knocks back heat gain and UV fading on floors and furniture. Frosted and Obscure are ideal for a door that opens onto a side yard or a close neighbor line, where you want light but not a sightline. Black Tint and Gray Tint both cut glare in west-facing rooms that get hammered by afternoon sun. Impact-rated laminated glass is available across all of these, and we always recommend it for any opening that faces the water unprotected by a windbreak.
Installation by TruePane Windows & Doors in Vero Beach
A 36-foot sliding door is not a siding job. It’s a structural installation, and how it gets set determines how it performs for the next twenty years.
Our Vero Beach process starts with a pre-install inspection. We measure the rough opening down to the eighth of an inch, check the floor for slope, and confirm the header can carry the load the aluminum panels will put on it. If the opening is not square, we correct it before the door arrives, because shoving a precision-engineered aluminum frame into a crooked opening ruins the alignment and voids the manufacturer’s warranty.
On install day, we set each track dead level, square the jambs, and plumb every panel so the door closes flush at both ends with even reveal margins. Every perimeter joint gets sealed with AAMA 812 low-expansion foam and a continuous backer-rod sealant line. The work is completed to AAMA 2400/2410 installation standards, which is the published standard for aluminum fenestration. After the panels are hung and adjusted, we run water across the whole threshold with the door closed and one panel retracted, checking under the sill with a flashlight for any weep-back. Then we test the rollers, locks, and screens, wipe everything down, and walk you through operation before we leave.
This matters in Vero Beach because of two local realities: high heat and high humidity. Foam that expands too much can bow a track out of level. Sealant that isn’t tooled right opens a gap under the sill cap, and then every summer squall that blows east off the Gulf keeps testing that gap until your flooring tells you it failed. We’ve been called out to re-install doors put in by general contractors who skipped the foam seal or shimmed the track with plywood scraps. Panels that should glide now drag. Frames have pulled off the substrate. The fix costs more than the job done right the first time.
Frequently Asked Questions - VLX 138 Panoramic Sliding Door
Standard finishes and glass usually ship from ViewLux in 4 to 6 weeks, while custom colors or impact glass can add 2 to 3 weeks. In Vero Beach, we always pin the lead time to the exact options you choose before you sign, so you’re not guessing when your door arrives. Call (772) 279-7983 and we’ll quote it out with current factory timelines.
The VLX 138 can qualify for federal energy efficiency credits when configured with Low-E glass and a thermally broken frame that meets NFRC-rated thresholds. Your eligibility depends on the exact glass package and where the door is installed, so have a copy of last year’s tax situation in mind when you call. We can provide the documentation you’ll need for your accountant.
The VLX 138 carries the manufacturer’s structural and finish warranty from and TruePane backs every installation we perform with our own workmanship guarantee on labor. If the door was installed by someone other than an authorized ViewLux partner, the manufacturer can decline warranty claims for improper install. Call (772) 279-7983 and we’ll walk you through exactly what’s covered.
Yes. The VLX 138 is built to your opening’s exact dimensions in quarter-inch increments, up to a 36-foot maximum span. Panel count, track configuration, sill height, and screen type are all chosen per job. Every Vero Beach home has a slightly different rough opening, and this door is not a big-box stock size.
Wipe the tracks with a dry cloth every month, especially after storms blow sand and salt in from the coast, and wash the frames twice a year with mild soap and water. Avoid abrasive cleansers and pressure washers on the finish. Keep the stainless roller bearings clean and dry; they are sealed but not indestructible. If a panel ever starts to drag, call us before it gets worse.
Get a Quote - VLX 138 Panoramic Sliding Door in Vero Beach
If you’re pricing a panoramic slider for your Vero Beach home, we’ll give you a fixed, line-item quote after a free on-site measurement. No change orders, no surprises. Call (772) 279-7983 to schedule your consultation with TruePane Windows & Doors, your authorized ViewLux partner on the Treasure Coast.
Written by the team at TruePane Windows & Doors, serving Vero Beach, FL.
Six Reasons Homeowners Choose TruePane Windows & Doors
Impact systems engineered to design pressures up to +/-100, matched to your wind zone - your openings hold when the storm arrives.
Low-E insulated impact glass from our manufacturer lines commonly cuts monthly cooling bills 20-30%.
Laminated impact glass shuts out up to 40% of outside noise - traffic, neighbors, weather.
Monitoring services run $30-90 a month. Laminated impact glass resists forced entry around the clock, with no subscription.
Florida homeowners average around 25% savings on the windstorm portion of their policy after protecting every opening - some homes qualify for more.
A full impact package upgrades curb appeal, buyer confidence and appraised value in one project.
Other TruePane Windows & Doors Services
What Neighbors Say About TruePane Windows & Doors

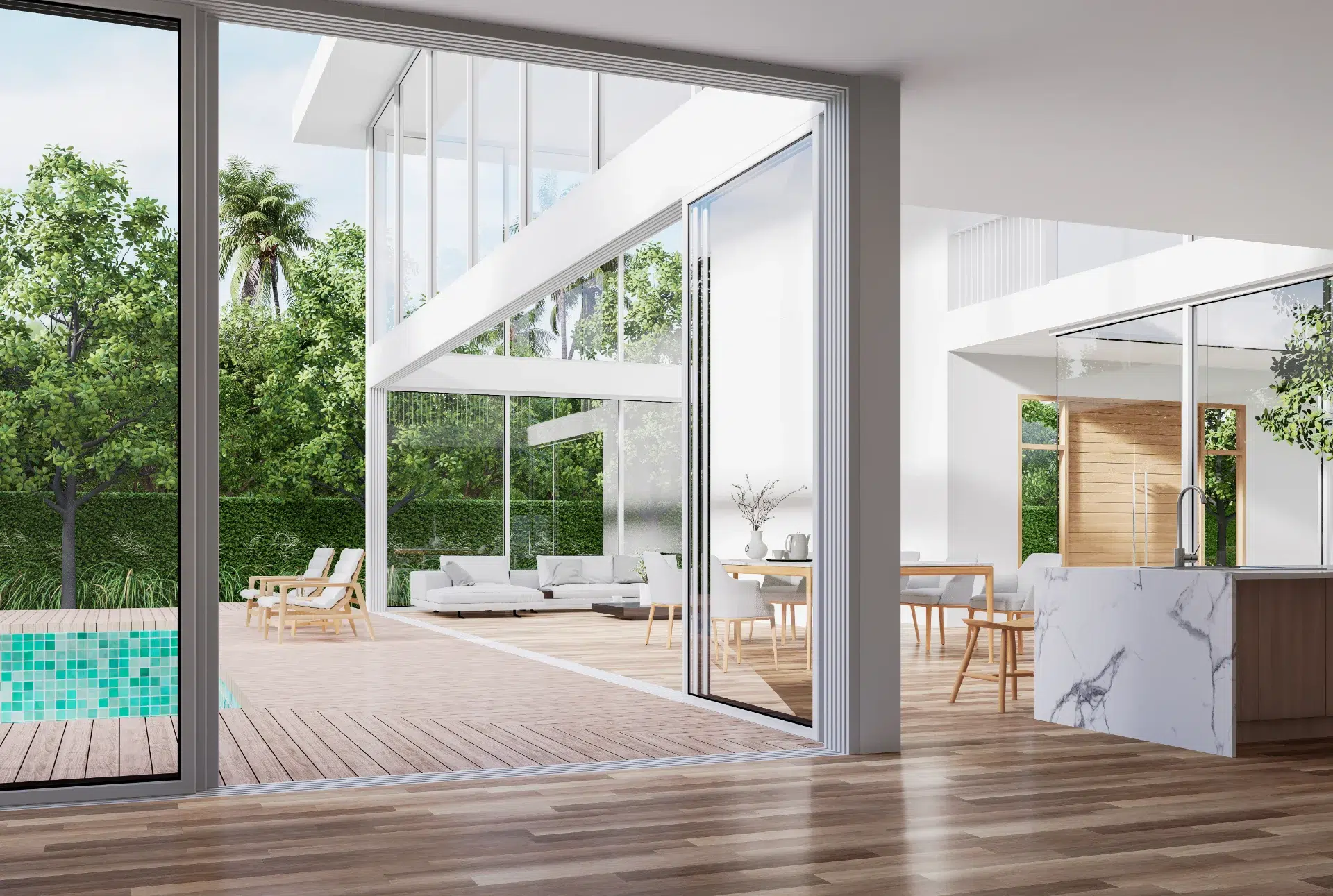

Detailed Images
