AfterVLX 500 Sliding Window in Vero Beach, FL | TruePane Windows & Doors
The VLX 500 Sliding Window is a high-performance aluminum sliding system built for Florida’s coastal climate. We install this ViewLux-manufactured window throughout Vero Beach, and it’s become a go-to for homeowners who want wide sightlines, smooth operation, and a frame that won’t sag or swell in humidity. As an authorized ViewLux installation partner, TruePane Windows & Doors handles everything from measurement to final inspection, so you get the product warranty intact and an install that meets AAMA standards. Call (772) 279-7983 for a free on-site measurement and quote.
Product Overview - VLX 500 Sliding Window
The VLX 500 is designed around a simple idea: a window should disappear into the wall and let the view do the work. The profile measures just 1.97 inches wide, which means less frame in your sightline and more glass. That slimness matters in Vero Beach, where homes are oriented toward water views, pool decks, and back patios. You don’t want thick mullions chopping up the scene.

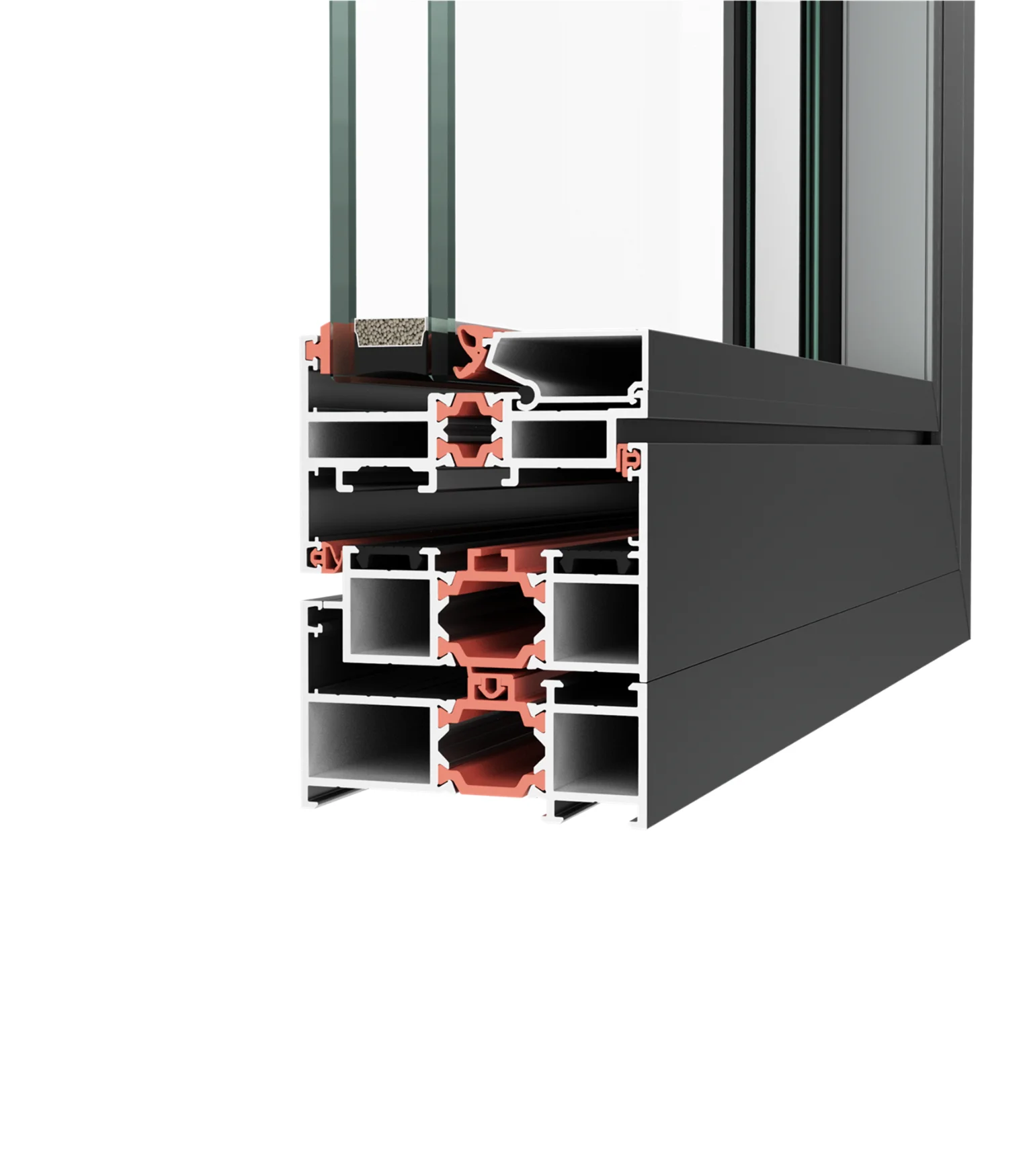

It’s an aluminum system, so the frame is inherently rigid. Aluminum doesn’t warp, twist, or absorb moisture the way wood and some vinyl products do. That rigidity is what allows for panels up to 8 feet tall without the sash bowing over time. The wall thickness of 0.079 inches gives the extrusion real structural heft while keeping the overall profile sleek.
The 2-track configuration gives you a single sliding panel over a fixed panel, which is the most common layout we install in Vero Beach living rooms and bedrooms. The 3-track version opens up more possibilities: three panels across one opening, with multiple panels sliding, which works well for lanai enclosures and wide openings that need maximum ventilation. Hardware is integrated into the frame, so there are no bulky surface-mounted locks catching on curtains or blinds.
Technical Specifications
- Frame material: Extruded aluminum, 0.079″ wall thickness, 1.97″ overall profile width
- Track configurations: 2-Track (standard) or 3-Track (wide openings, multi-panel)
- Glass options: Clear, Frosted, Low-E, Tempered, Laminated (impact-rated)
- Finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screens: Retractable Screen or Sliding Screen
- Thermal performance: Thermally broken frame, NFRC-rated energy data available per configuration
- Structural standard: Wind-load rated for Florida coastal requirements
- Installation standard: AAMA 2400/2410 compliant, AAMA 812 sealant on all perimeter joints
Performance Features
Thermal Efficiency - The VLX 500 uses a thermal break between the interior and exterior aluminum profiles, which stops heat from conducting straight through the metal. In Vero Beach, where afternoon sun beats on west-facing windows most of the year, that break plus Low-E glass keeps cooling bills from spiking. NFRC-rated performance data is available for every glass-and-finish combination we quote.
Acoustic Performance - Aluminum frames with proper glazing channels do a better job of isolating glass from frame vibration than hollow vinyl. Add laminated glass and you’ll notice a real drop in road noise from A1A or US-1. We recommend laminated glazing for any room facing a street or heavy foot traffic.
Airtightness & Weather Seal - The VLX 500 uses interlocking rail seals and a compression gasket system that closes tight along every panel edge. That means no air infiltration through the meeting rail, even during a stiff northeast wind off the Atlantic. A tighter seal also keeps conditioned air in, which is the quietest efficiency upgrade most people never think about.
Waterproofing - The sill is sloped with internal drainage channels that direct water outward before it can pool against the frame. Combined with AAMA 812 low-expansion foam on every perimeter joint during installation, the system is built to handle Florida’s horizontal rain and afternoon downpours without leaking.
Wind Resistance - Every VLX 500 configuration we order is wind-load rated for the Vero Beach building code requirements. For homes in the coastal impact zone, the laminated glass option meets impact-resistance standards when paired with the proper hardware and anchoring. We’ll confirm your specific code requirements during the site measurement.
Security & Hardware - The sliding panel locks into the frame with a die-cast mechanism that engages the full height of the sash, not just a single latch point. The aluminum frame itself resists prying in a way vinyl simply doesn’t. Combined with laminated glass, it’s a meaningful deterrent without adding bars or films that look after-market.
Color & Glass Options
The VLX 500 comes in six finishes. Premium Black and Pure White are the most popular in Vero Beach right now, both working well with modern concrete-and-glass construction and the transitional style that dominates new builds along Indian River Boulevard. Anodized Silver has a raw, minimal feel that suits mid-century and courtyard-style homes. Bronze reads warmer, Champagne is the best match for gold or brass interior hardware, and Teak Wood gives you a warm, wood-look finish without any of the rot or swelling concerns of real wood in coastal humidity.
For glass, Clear is the standard for unobstructed views. Frosted works for bathrooms and side-facing windows where you want light without sightlines to a neighbor. Low-E is the energy upgrade we recommend on any east- or west-facing opening. Tempered glass is required by code in certain locations like doors and low sills, and Laminated is the impact-rated option for storm protection and noise reduction.
Screen choice depends on how often you open the window. The Sliding Screen is the workhorse, easy to move and simple to maintain. The Retractable Screen disappears into the frame when not in use, which preserves the clean sightline when the window is closed.
Installation by TruePane Windows & Doors in Vero Beach
Here’s the thing about aluminum windows: the product is only as good as the opening it goes into. A VLX 500 installed out of square will bind, leak air, and wear its hardware prematurely. Worse, most manufacturer warranties are void if the unit isn’t installed to AAMA 2400/2410 standards. That’s why we recommend professional installation on every project, and why we hold ourselves to those standards on every window we set in Vero Beach.
Our process starts with a pre-install inspection of the rough opening. We check the framing for square, level, and plumb before ordering anything. We’ll identify water intrusion risks, existing flashing failures, and any framing repair needed before the new window goes in. Then we set the unit level and plumb, shimming precisely so the sash glides without friction.
Every perimeter joint gets AAMA 812 low-expansion foam sealant, which fills gaps without pushing the frame out of alignment. We tape and flash the exterior to your home’s WRB, then run a water test around the sill and jambs. That last step catches installation defects before drywall goes back up, not after the first storm reveals a leak. We finish with interior trim, cleanup, and a walkthrough of operation and care.
Vero Beach’s salt air and humidity mean sealant and flashing choices matter more than they do inland. We use products rated for coastal exposure and inspect existing flashing carefully during every install.
Frequently Asked Questions - VLX 500 Sliding Window
Most VLX 500 orders arrive within 4 to 6 weeks from final measurement and deposit. Custom sizes, laminated glass, or 3-track configurations can extend that slightly. We’ll give you a firm timeline at your quote appointment. Call (772) 279-7983 to schedule a free measurement.
Potentially, yes, depending on the glass package and whether the unit meets ENERGY STAR criteria for the South Florida zone. Low-E glass combined with the thermal break gives the best chance of qualifying. We’ll provide the NFRC labels for your specific configuration so you can check eligibility with your tax professional. Call (772) 279-7983 and we’ll walk you through approximate pricing with the Low-E upgrade.
The manufacturer warranty covers the aluminum frame and hardware, with specific terms for the glass and finish. The warranty is valid only when the unit is installed to AAMA standards by a qualified installer, which is where our process protects your purchase. We’ll give you all warranty documentation at the time of your quote, not after installation, so you can review it before committing. Call (772) 279-7983 with any warranty questions.
Yes. These are not stock sizes. Every VLX 500 we order is fabricated to the dimensions of your rough opening, so you’re not forced to reframe a wall around a standard window size. That’s particularly valuable in older Vero Beach homes where rough openings vary by a half-inch or more between rooms. We measure every opening precisely before ordering. Call (772) 279-7983 to schedule a free measurement.
Aluminum frames need minimal maintenance, but salt air does require attention. Rinse the frames and tracks with fresh water every few months, especially if you’re within a mile of the ocean. Keep the sill drainage channels clear of debris. Avoid abrasive cleaners on the finish. The powder-coated finishes on the VLX 500 hold up well, but salt residue left to sit can eventually dull any coating. That’s the simple rule: rinse it off. Call (772) 279-7983 for a free quote on VLX 500 windows for your Vero Beach home.
Get a Quote - VLX 500 Sliding Window in Vero Beach
If you’re considering the VLX 500 for a single room or a whole-house window replacement in Vero Beach, let’s get you a written, line-item quote. We’ll measure, recommend glass and finish combinations that fit your home and budget, and give you a fixed price before you commit to anything. Call (772) 279-7983 or call to schedule a free on-site measurement and project consultation.
Written by the team at TruePane Windows & Doors, serving Vero Beach and Indian River County.
