VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Vero Beach, FL | TruePane Windows & Doors

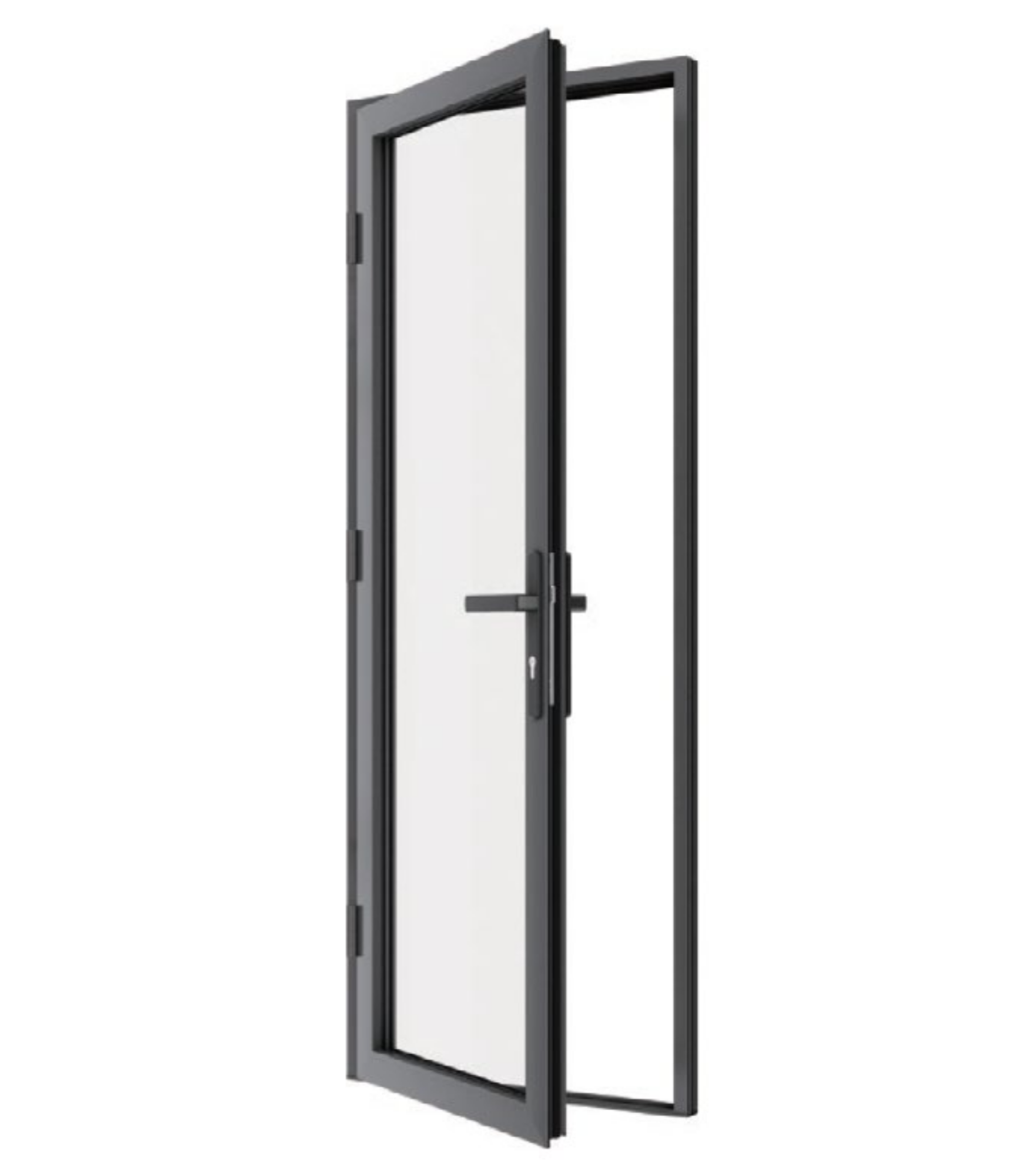

The VLX 100 Swing / Entry Door is a single-panel aluminum entry door with a slim, modern frame and a multi-point locking system. It’s the door we recommend most often for Vero Beach homeowners who want a clean architectural front entry without the bulk of traditional wood or fiberglass. TruePane Windows & Doors is an authorized ViewLux installation partner, which means you get the product warranty and a local Vero Beach team that installs to AAMA standards. Call (772) 279-7983 to talk through sizes, finishes, and a free on-site measurement.

Call (772) 279-7983

Product Overview - VLX 100 Swing / Entry Door

The VLX 100 is built around a simple idea: the door should frame the glass, not compete with it. The profile is just 2.56 inches wide, which reads as a very thin line around the panel. That narrow sightline is the whole point. You get maximum daylight and a crisp, gallery-like entry that works especially well on contemporary ranch homes, new-construction coastal builds, and the mid-century-inspired houses scattered through Vero Beach neighborhoods like Riomar and Central Beach.

What separates this door from a standard builder-grade entry is the locking hardware. The VLX 100 secures at multiple points along the frame, not just at the handle. When you close the door and lift the lever, bolts engage the jamb at several locations. It’s a tighter, more secure seal than a single deadbolt, and it also pulls the panel snug against the weatherstripping, which helps with air and water performance.

The slab itself is aluminum with a wall thickness of 0.098 inches. That’s a heavier extrusion than you’ll find on many aluminum doors sold for interior use. It resists racking, stays flat in humid coastal air, and doesn’t swell or warp the way wood doors do after years of Florida rain and salt. For a Vero Beach entry that faces afternoon sun or gets hit with wind-driven storms, that dimensional stability matters.

We stock, quote, and install this series as part of our ViewLux lineup. Because TruePane Windows & Doors is an authorized partner, you’re not buying a door off the internet and hoping a handyman can figure out the installation. You’re buying from a Vero Beach company that has done the training and carries the liability for the install. Call (772) 279-7983 if you want to see a sample in person.

Technical Specifications

Here are the core measurements and options for the VLX 100 Swing / Entry Door as we order it for Vero Beach projects. We reframe these specs from the manufacturer cut sheets so homeowners can actually compare apples to apples.

• Wall thickness: 0.098-inch aluminum extrusion. Stiffer than typical residential door aluminum, which means less flex over a 48-inch span.
• Profile width: 2.56 inches. Slim sightline, modern aesthetic, without sacrificing structural rigidity.
• Maximum span: Up to 48 inches wide for a single panel. Wider openings require a sidelite or double-door configuration.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated. Laminated is the impact-rated choice for wind-borne debris zones.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. All are factory-applied finishes, not site-painted.
• Screen options: Retractable screen or none. The retractable option disappears into the frame when not in use.
• Performance standards: NFRC-rated energy performance via thermal break technology. Installed to AAMA 2400/2410 standards with AAMA 812 foam sealant at all perimeter joints.

Performance Features

Six things we think about when a Vero Beach homeowner asks whether this door will actually hold up. The short answer: yes, if it’s installed correctly. Here’s what’s engineered into the VLX 100.

Thermal Efficiency
The VLX 100 frame carries a thermal break, which interrupts the metal-to-metal heat path through the extrusion. That’s what allows the NFRC-rated energy performance. In Vero Beach terms, it means the interior side of the frame stays closer to room temperature, and your AC doesn’t work as hard on an east-facing entry.

Acoustic Performance
Aluminum is dense, and when the multi-point lock pulls the panel tight against the weatherstripping, the door closes like a vault. For homes on A1A, near US-1, or anywhere with traffic noise, the VLX 100 with laminated glass provides a noticeable reduction in exterior sound compared to a hollow metal or wood door.

Airtightness & Weather Seal
Every perimeter joint between the frame and the rough opening is sealed with AAMA 812 low-expansion foam. That’s a specification, not a preference. It prevents air leakage, keeps conditioned air in, and stops the drafts that show up as hot spots near the threshold in summer.

Waterproofing
The sill design and the compression weatherstripping work together to keep wind-driven rain out of the entry. We also install a continuous sealant line at the exterior frame-to-wall transition. During a Vero Beach summer downpour, water should sheet off the door and away from the threshold, never pool against the jamb.

Wind Resistance
The VLX 100 is wind-load rated for local climate requirements. For homes in a wind-borne debris zone, we recommend laminated impact glass. The combination of the thicker extrusion, multi-point lock, and laminated glazing gives this door the structural performance that coastal Florida demands.

Security & Hardware

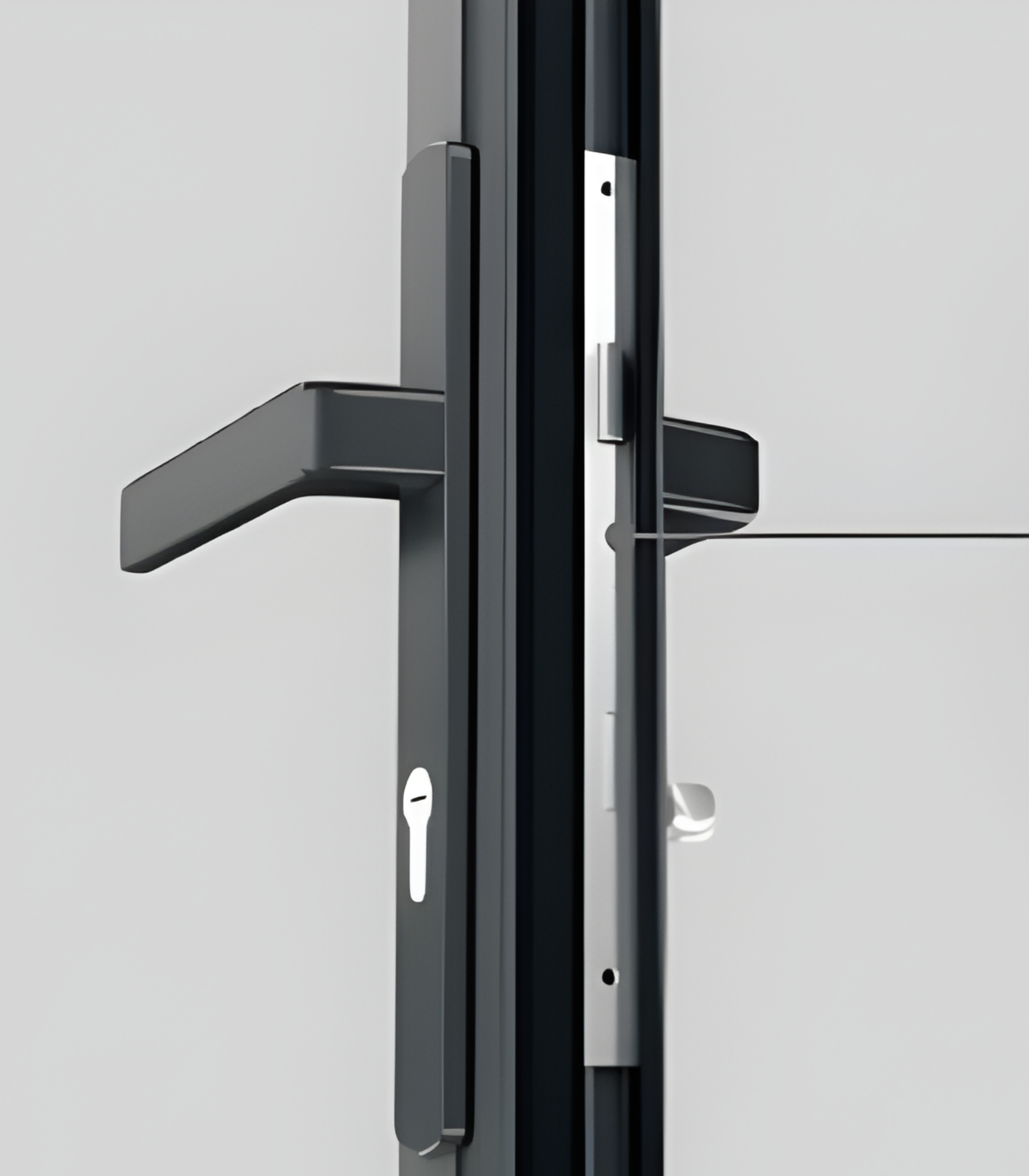

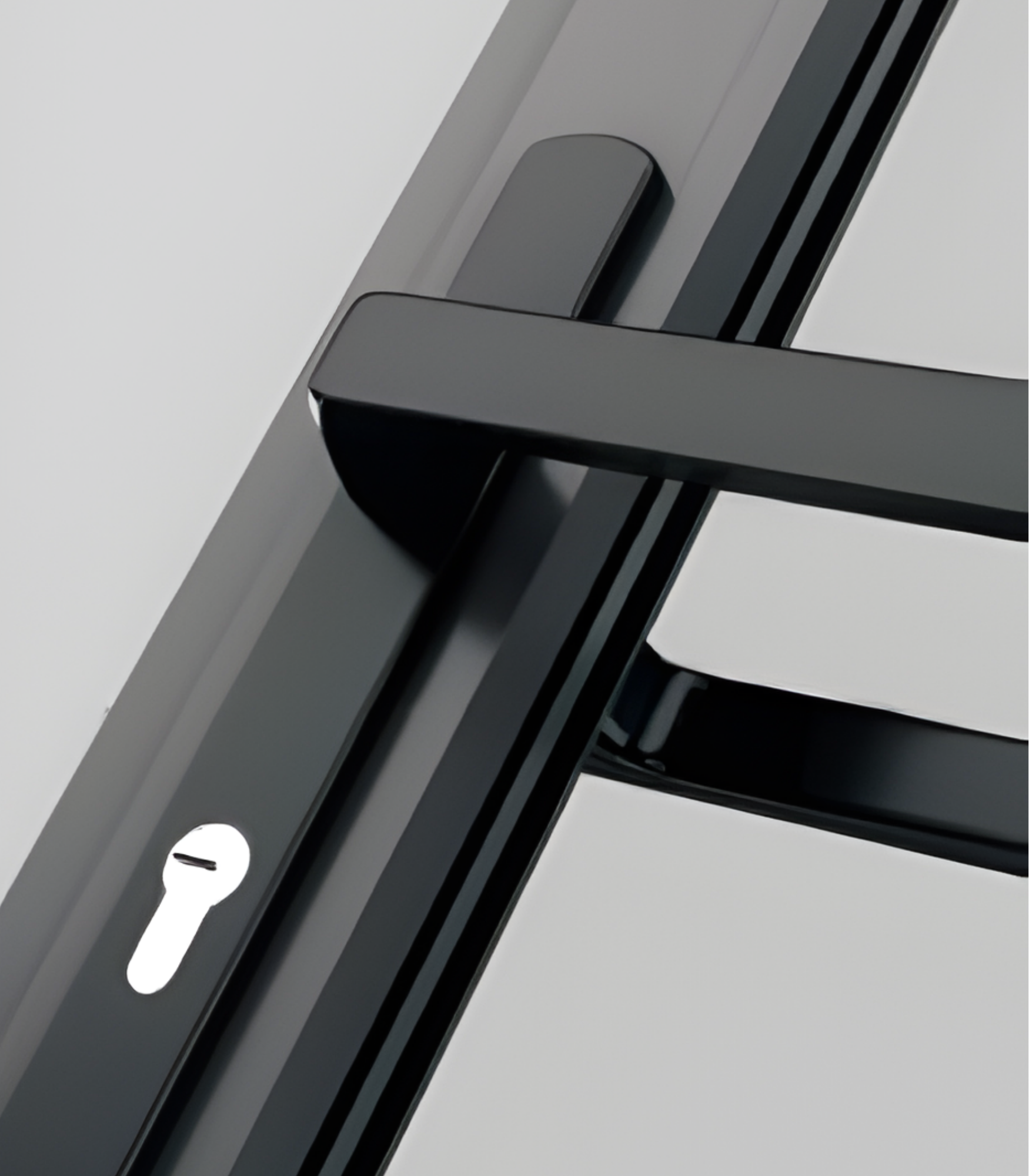

The multi-point locking system engages at the handle and at additional points along the top and bottom of the panel. It’s the same principle used in European entry doors: distribute the locking force instead of relying on one deadbolt. If someone tries to pry the door, they’re fighting the entire frame, not one strike plate.

Color & Glass Options

The VLX 100 comes in six factory finishes. Premium Black and Anodized Silver are the two we order most for Vero Beach modern and coastal projects. Pure White works on Key West-style homes where the trim is bright. Bronze and Champagne read warmer and pair well with terracotta or beige exteriors. Teak Wood is a subtle nod to mid-century design without the maintenance of real timber.

Glass is where the door earns its keep. Clear is the default for unobstructed views. Frosted and Obscure belong on entries where you want privacy without losing light, especially if your front door faces the street or a neighbor’s lanai. Low-E is a coating that reduces solar heat gain through the glass panel. Tempered is safety glass that crumbles instead of shattering into shards. Laminated is the impact-rated option: two layers of glass bonded with an interlayer that holds together if something hits it, which is why we specify it for wind-borne debris zones in Indian River County.

For a front entry in Vero Beach that gets direct afternoon sun, we typically suggest Low-E laminated glass in a Premium Black or Anodized Silver frame. You get impact protection, heat rejection, and the modern look in one package.

Installation by TruePane Windows & Doors in Vero Beach

A good door installed badly is still a failing door. That’s the part most online door sellers skip. Here’s what our Vero Beach installation process actually looks like for the VLX 100 Swing / Entry Door.

Before we order anything, we come to the house and measure the rough opening. Width, height, diagonal measurements, and a check for out-of-square framing. If the opening is off by more than a small tolerance, we address that before installation, not after. An aluminum door cannot be shimmed to compensate for a bad rough opening the way a wood slab can flex. It needs to be level, plumb, and square, or the multi-point locking system won’t engage cleanly.

On install day, we remove the existing door, inspect the sub-sill and framing for rot or termite damage, and correct anything we find. The new frame is set level and plumb, then mechanically fastened. We run AAMA 812 low-expansion foam sealant around the entire perimeter joint. That seals the gap between the aluminum frame and the wall structure. We follow AAMA 2400/2410 installation standards, which include specific requirements for flashing, shimming, and anchoring that apply to residential aluminum fenestration products.

After the door is hung, the panel is adjusted so it closes square in the frame and the multi-point lock engages without force. We run a water test on the sill and threshold. Then we do a final air check, clean up, and walk you through operation and maintenance. In Vero Beach’s humid salt air, we pay extra attention to the sill and the bottom of the frame, because that’s where untreated water causes the most damage over time.

One thing we’re blunt about: an improper installation voids the manufacturer warranty. Not weakens it. Voids it. ViewLux’s warranty language covers manufacturing defects, not leaks caused by a bad install. When TruePane Windows & Doors installs your door, the installation workmanship is our responsibility, and the product warranty stays intact because we followed the manufacturer’s installation requirements. Call (772) 279-7983 to schedule a measurement.

Frequently Asked Questions - VLX 100 Swing / Entry Door

Get a Quote - VLX 100 Swing / Entry Door in Vero Beach

The VLX 100 is a door you order once and live with for decades. The right size, the right glass, the right finish, and an install that holds up to Vero Beach weather. Call TruePane Windows & Doors at (772) 279-7983 to schedule a free on-site measurement and get a written, line-item quote for your entry door project. We’ll help you dial in the configuration, walk you through options, and give you a firm number before you commit.

Written by the team at TruePane Windows & Doors, serving Vero Beach, FL and the surrounding Indian River County area.
